Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 PhotosPart Number: OVCRH03-001

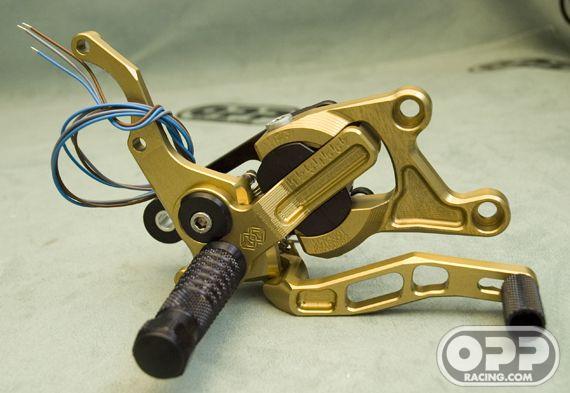

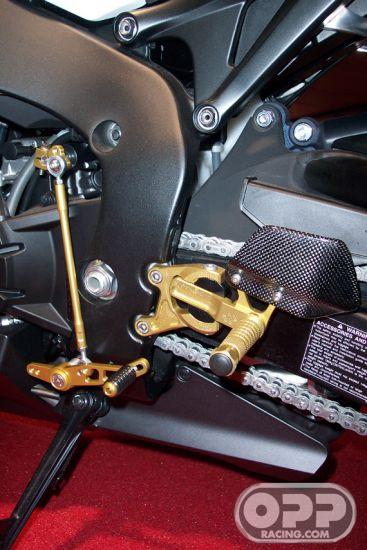

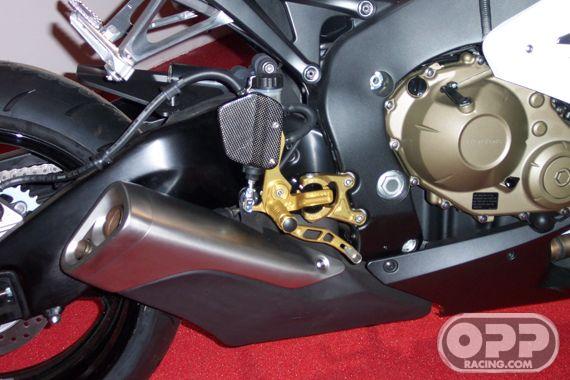

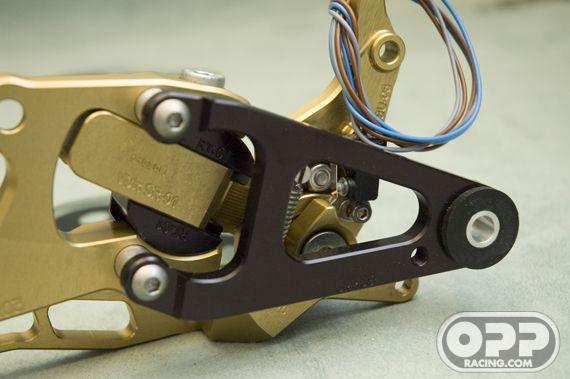

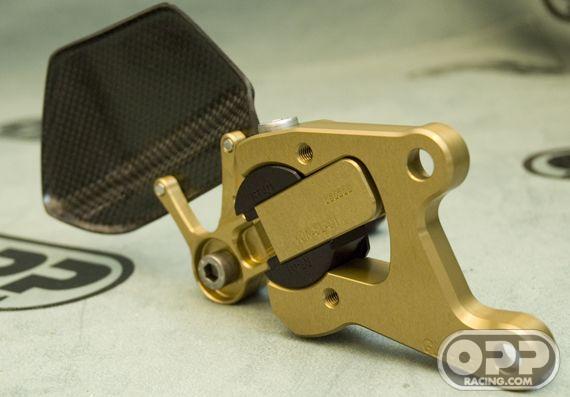

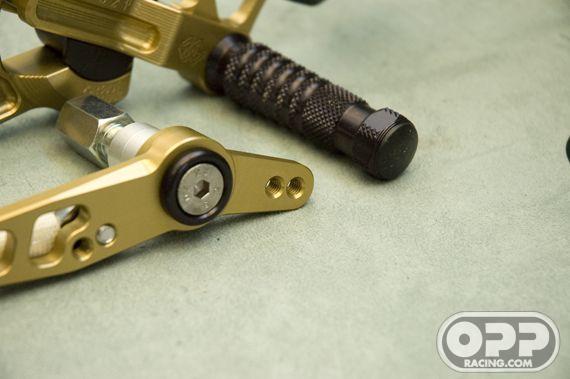

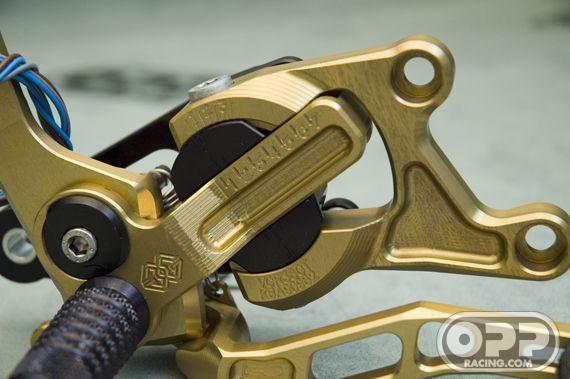

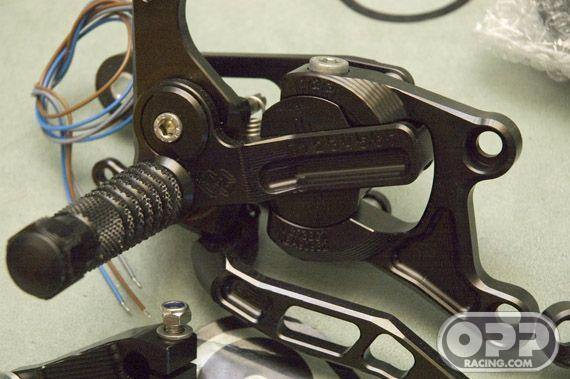

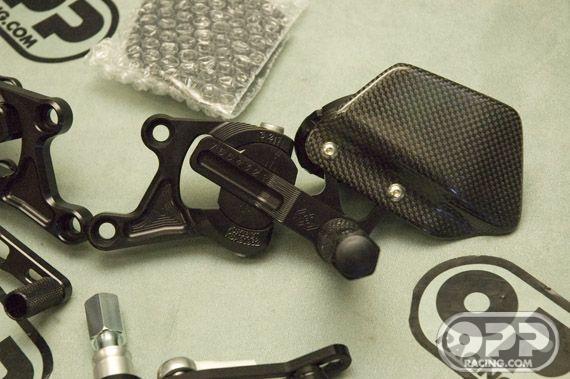

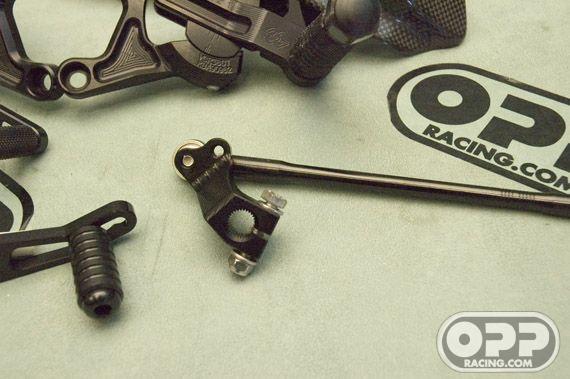

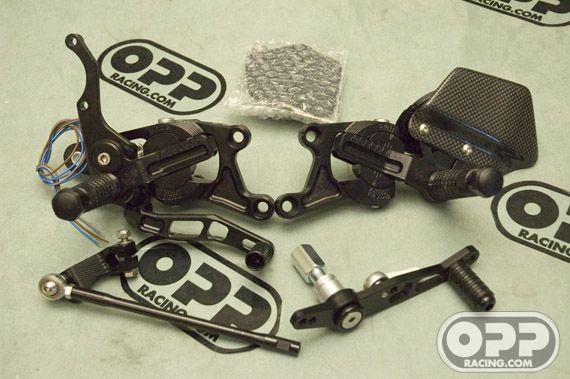

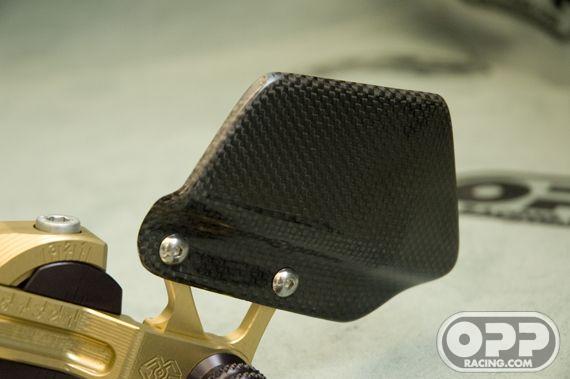

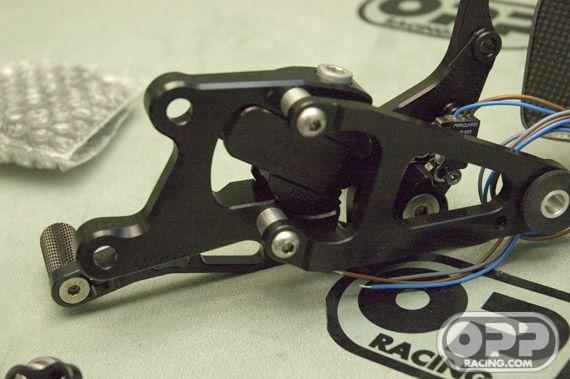

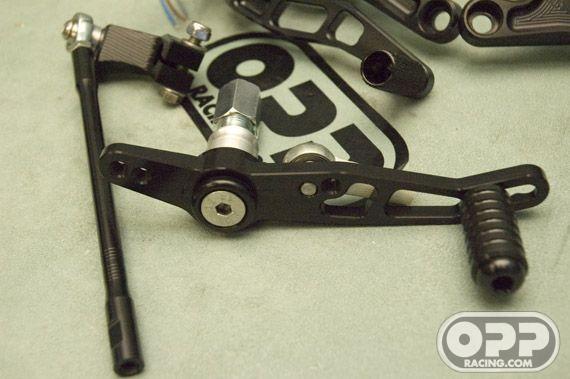

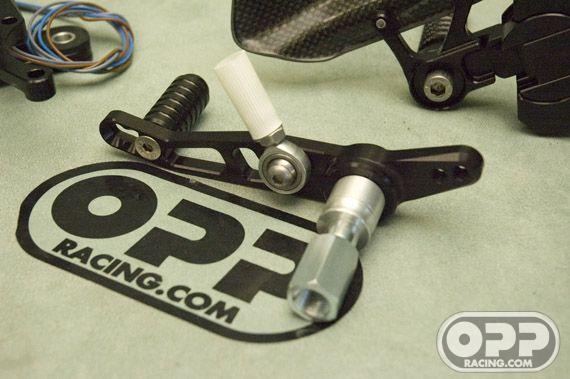

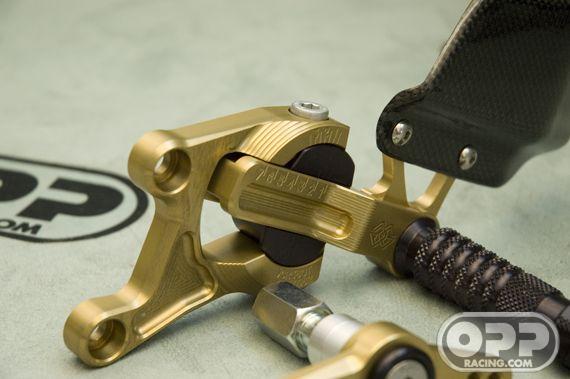

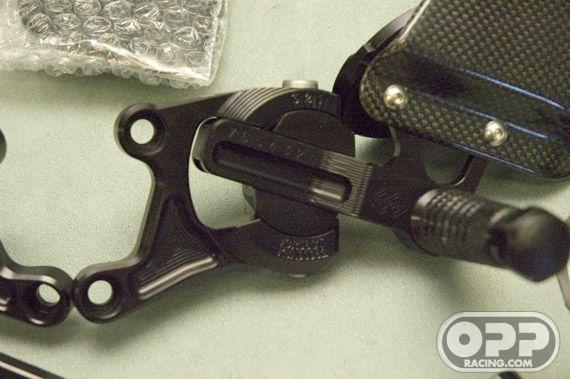

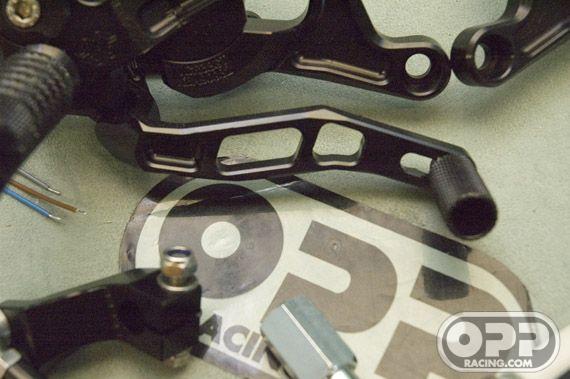

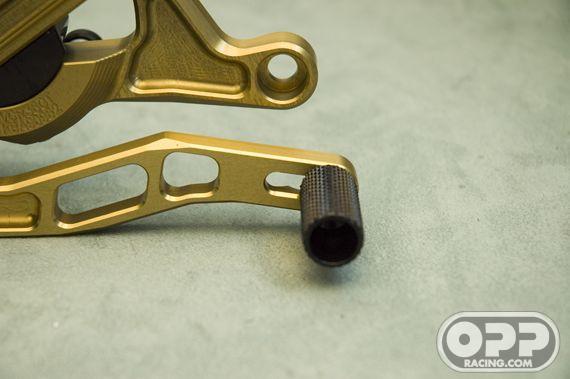

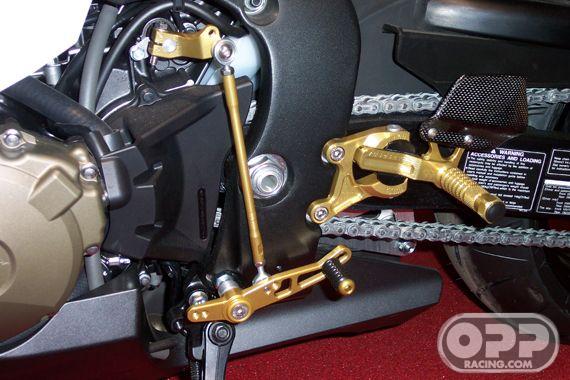

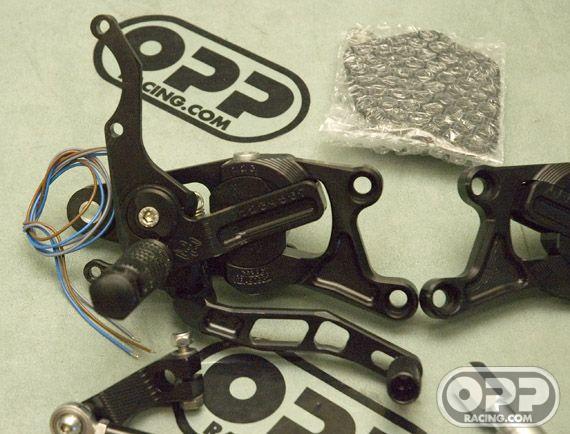

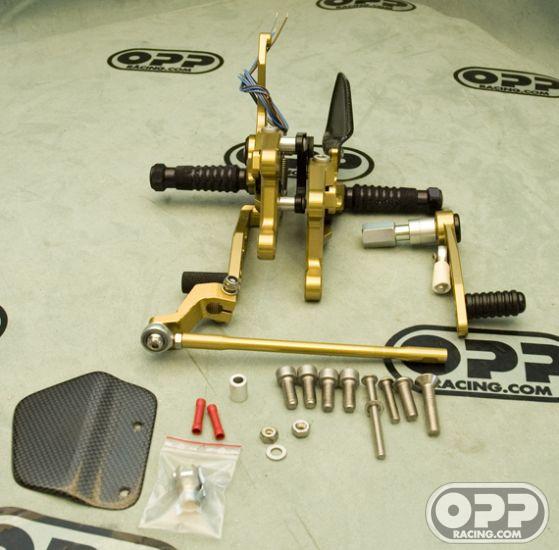

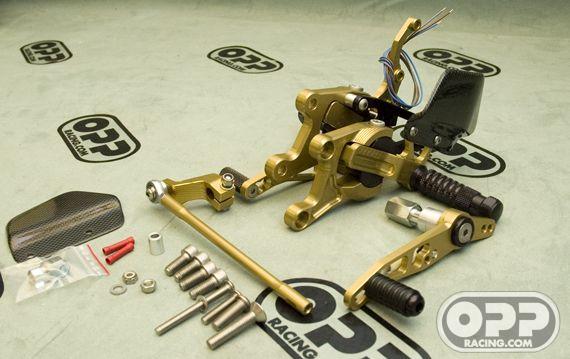

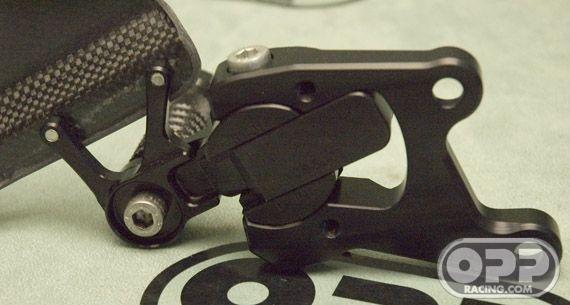

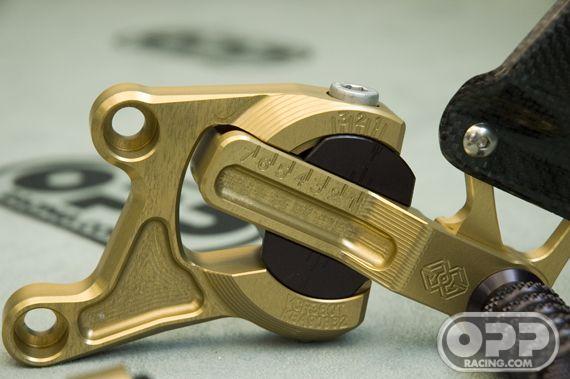

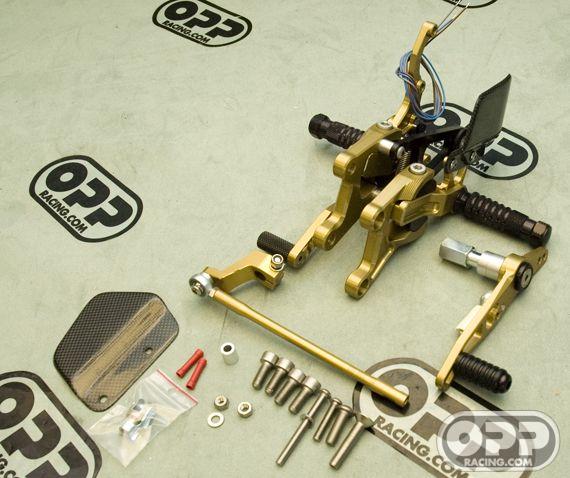

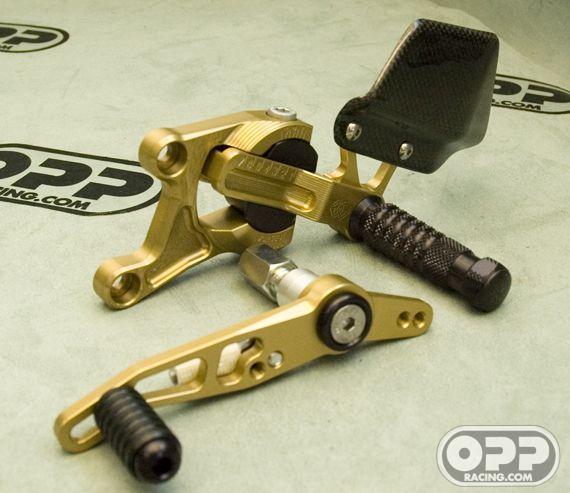

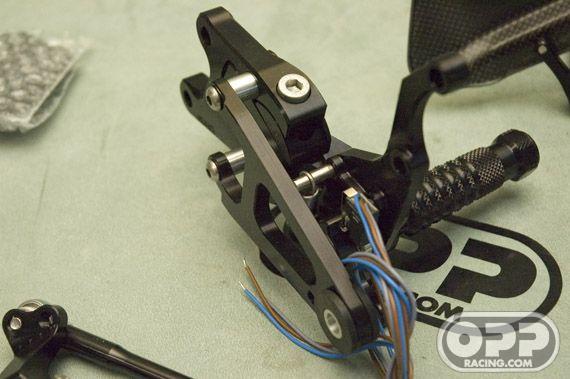

 Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here is a frontal overview of everything that you get in the box with the rear-sets  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Note the right heel guard is not mounted to allow for easier installation of these rear sets.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Note you receive all bolts and hardwaare to mount these rear-sets to your bike.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here you can see the shift lever. This lever is a very robust design and helps the rider make more positive shifts.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Note the 2 mounting points at the rear of this clutch lever. This is for precision adjustment of the lever.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here you can see the contrast between the black and the gold finish.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here is a close up of the left heel guard on these rear sets.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here is a closer look at the adjustment markings on the left side rear-set.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here you can see the back side of the left rear-set in gold/black color combination.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here is the right side rear set. Note the wires in the image are for the pressure switch.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here is a close up look at the knerled brake peg in black.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - This view shows the adjustment markings on the right side of this rear-set.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09- Here you can see the black mounting bracket.  Gilles Tooling VCR Rear Sets - Honda CBR1000RR 08-09 - Here you can see the mounting bracket as well as the micro switch that is used to actuate your rear brake light.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the right side rear set mounted.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Note, the carbon fiber heel guard is now mounted to the rear set.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Note the perfect fitment of these rear sets.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see a left frontal view of the rear-set.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here is a left side overview of the rear-set.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the left side rear set.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the carbon fiber heel guard.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here is the gold and black rear-set on the left side.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the all black shift. lever.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the brake lever. Note the knerled toe peg.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the shift link and the shift support.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here is the back side of the left rear set in black.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here is a back side of the right rear-set in black.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the wires leading to the micro switch.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the very strong pivot point for the gear selector lever.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the heavly textured foot peg. This design provides alot of grip and ensures you will not have you rfoot slip off at the wrong time.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the adjustment markings on the left side rear-set.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here is an overview of the left side rear set in black.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the left and right rear set in black.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see the right side rear-set with micro switch.  Gilles Tooling Rear Sets - Honda CBR1000RR 2008 - Here you can see a close up view of the adjustment markings. |
||||||||||
 |
