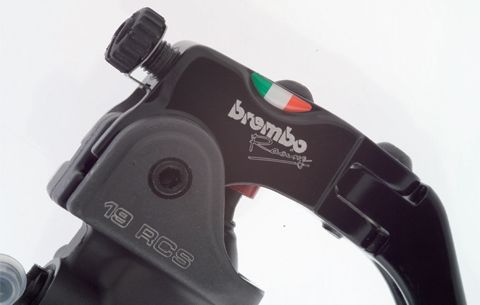

19RCS Forged Radial Brake Master Cylinder with Folding Standard Lever (7/8 Bar)

Item Summary

• A 19x18 and 19x20 master cylinder in one!
• Incorporates microswitch brake technology for instant street use (does not require banjo with pressure switch)
• Relocated knob adjuster like the Brembo 19x20 Billet Folding Brake Master Cylinder used in MotoGP
• Folding lever for mitigating crash damage
• Recommended with a LighTech Remote brake adjuster cable & perch or Brembo Remote Adjuster for left-handed brake fade adjustment
• Recommended with a Brembo 16RCS Clutch Master Cylinder for bikes with a Hydraulic clutch
• For standard sportbike 7/8" or 22mm diameter clip-ons
• For more information, refer to this schematic
• Now approved for use with ABS-equipped motorcycles

About the Product

For more information regarding the 19RCS' approved use with ABS equipped bikes such as the BMW S1000RR, please refer to this Brembo technical bulletin.

Click here to view the complete 2012 Brembo Motorcycle Brakes catalog.

Brembo Reservoir Required: When upgrading your Brembo master cylinder, you will need an external Brembo reservoir to house the excess brake / clutch fluid. The easiest way is to purchase a Brembo brake reservoir mounting kit, which has all hardware,hose, clamps, etc included. You can also purchase the reservoirs or tubing separately if you want to custom fit your own.

Banjo Bolts Required: When upgrading your master cylinder, you will need new banjo bolts to connect the Brembo master cylinder to your brake lines. Choose a single banjo for OEM brake line configurations (one line to the right caliper with a crossover). Choose a double banjo for dual line configurations (one line to each caliper). For race applications, the banjo bolts do not have pressure switches. For street applications, we recommend banjo bolts with pressure switches that allow you to activate the brake lights.

Brake Fluid Required: Don't forget to purchase some Genuine Brembo Brake Fluid at the same time, since you will need to re-bleed your brakes after installing your new Brembo brake master.
