90Degree Remote Adjuster for Brembo Master Cylinders Photos
Part Number: OPBREMOT-001
 |
| >> 90Degree Remote Adjuster for Brembo Master Cylinders |
$585.95 |
 |
|
|
Please note, where possible we take multiple images from multiple angles, and we include alternate colours and styles if available. Check images carefully to see if this is the part for your bike!
90Degree Remote Adjuster for Brembo Master Cylinders - Here you can see all the components that some with this kit.

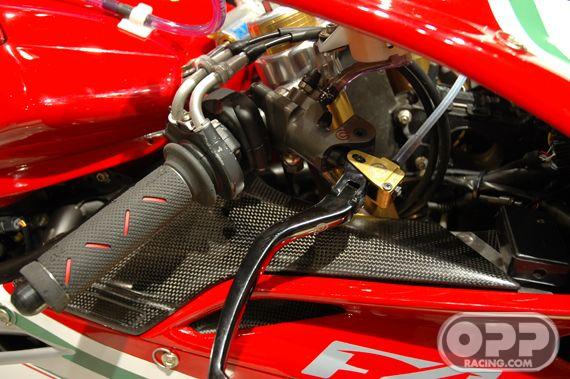

90Degree Remote Adjuster for Brembo Master Cylinders - Here is a complete overview of the system mocked up.
90Degree Remote Adjuster for Brembo Master Cylinders - Here is the 90 degree mount un-mounted. This mount replaced the small knob on the forward part of the master cylinder as well as the pin that this knob passes through.
90Degree Remote Adjuster for Brembo Master Cylinders - Here is a close up view of the adjustment knob and bracket mounted to the clutch side of the bike.

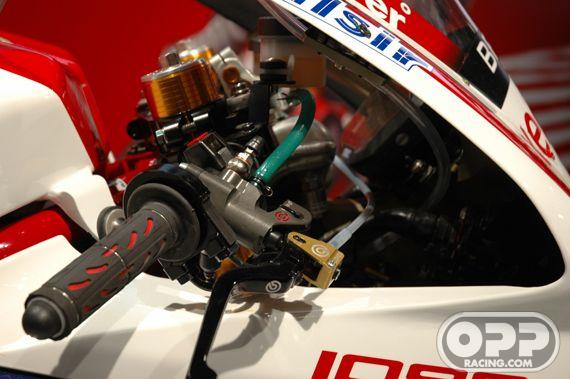

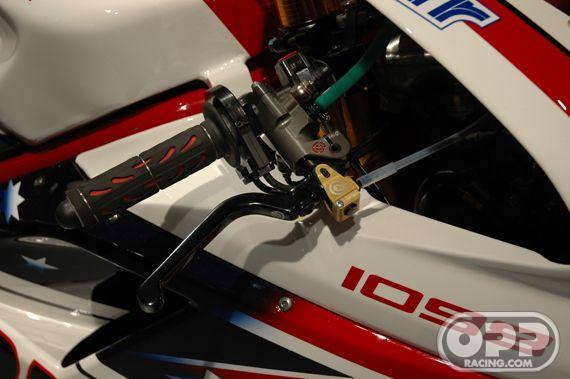

90Degree Remote Adjuster for Brembo Master Cylinders - Here is the complete assembly shown for reference.
90Degree Remote Adjuster for Brembo Master Cylinders - Here you can see the adjustment knob, knob mounting bracketrie and the cable.

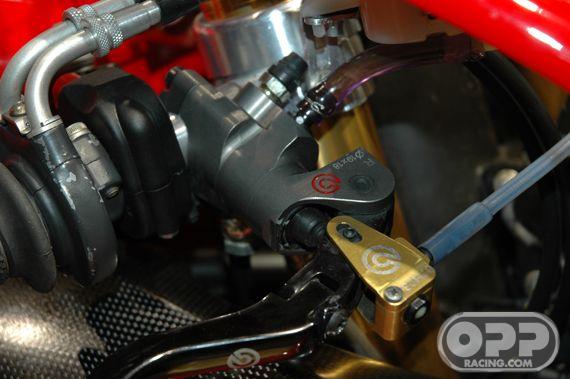

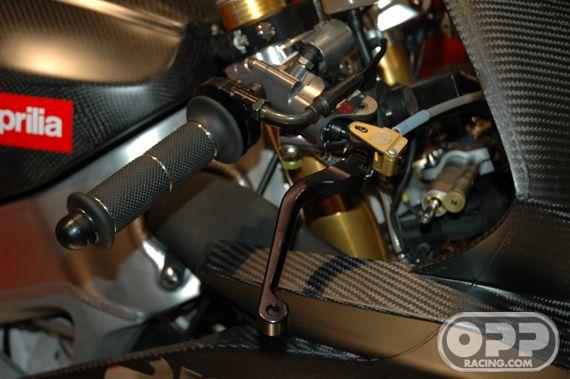

90Degree Remote Adjuster for Brembo Master Cylinders - This angle shows the 90 degree mechanisam. This mounts to the levers pivot point and allows you smoother and more precise brake adjustment
|
|
