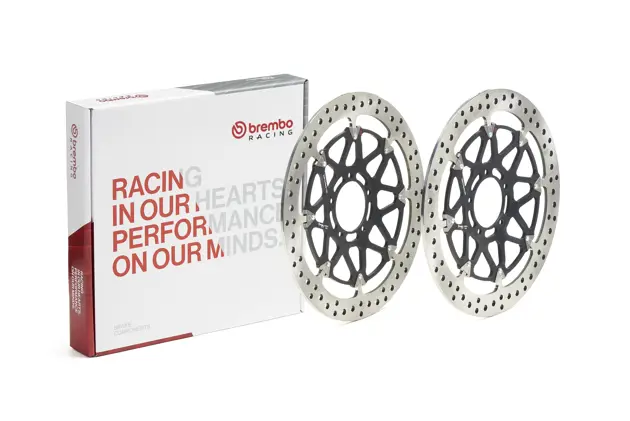

Disc Set, 330x5.5mm, T-Drive, HPK Kit, Ducati 12.5mm Offset, Floating, Black Carrier, - 208C89011

Item Summary

• 330mm

About the Product

T-Drive

The T-Drive disc, based on experience gained in MotoGp and Superbike events, has an innocative coupling between the rotor and the bell consisting of eight outlines of the bell, thereby allowing the elimination of drive pawls. A specific study of tolerances shows that this configuration scheives not only a significant weight reductiion but also both axial and radial floating capable of transmitting more braking torque. This disc also provides excellent resistance to thermomechanical stress, especially in extreme conditions such as races. T-Drive discs are available for the most common Maxi-sport models without requiring andy modifications.

The 208C89011 brake disc is synonymous with reliability

The T-drive disc, born from the experience gained in the top racing categories, is the latest evolution of Brembo racing discs. The special “T”-shape of the pins is the innovative element that strongly differentiates the T-drive from discs with drive pawls. This unique conformation transmits more braking torque, ensuring better resistance to thermal-mechanical stress, especially under extreme conditions of use, such as racing.

OE-equivalent

Brembo quality

TUV approved

Safety

Performance

Exclusive style

Racing inspired

Sports driving

Technical specifications

Diameter

330mm

Thickness

5,5mm

Number of holes

5

Hole diameter

8,6mm

Centering

72mm

Brake disc type

Floating

Off set

12,5mm

Surface width

32

Holes fixing

90mm

Units per box

2
